SBTEnvelope.h File Reference

#include "DecayVolume/SBTConstants.h"
#include <algorithm>
#include <array>
#include <cstddef>
#include <span>

Include dependency graph for SBTEnvelope.h:

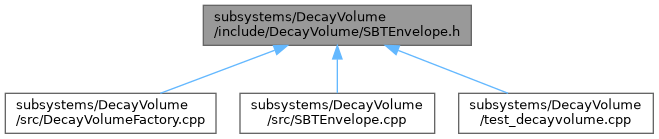

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SHiPGeometry::SBT::HeliumPiece
	The innermost free region of the SBT, and the helium that fills it. More...
struct	SHiPGeometry::SBT::HeliumSlabs

Namespaces
namespace	SHiPGeometry
namespace	SHiPGeometry::SBT
	Compile-time parameters of the Surround Background Tagger (SBT).
namespace	SHiPGeometry::SBT::detail

Functions
constexpr int	SHiPGeometry::SBT::detail::subFrustumAt (double z_mm, const SBTParams &params=kSBT)
constexpr double	SHiPGeometry::SBT::detail::sideTrackedXHalf (double z_mm, const SBTParams &params=kSBT)
constexpr double	SHiPGeometry::SBT::innerFreeHalfX (double z_mm, const SBTParams &params=kSBT)
	|X| of the innermost SBT material at z_mm (mm).
constexpr double	SHiPGeometry::SBT::innerFreeHalfY (double z_mm, const SBTParams &params=kSBT)
	|Y| of the innermost SBT material at z_mm (mm).
constexpr double	SHiPGeometry::SBT::detail::knotAt (int i, const SBTParams &params=kSBT)
	Z of envelope knot i, for 0 <= i <= 2*nSubFrustum.
constexpr double	SHiPGeometry::SBT::detail::envelopeAtKnot (double z_mm, bool isX, const SBTParams &params=kSBT)
constexpr HeliumPiece	SHiPGeometry::SBT::heliumPieceAt (int i, const SBTParams &params=kSBT)
	Helium slab i, for 0 <= i < 2*nSubFrustum.
constexpr bool	SHiPGeometry::SBT::leavesDecayRegion (const SBTParams &params=kSBT)
	Does params leave a decay region for the helium to fill?
constexpr HeliumSlabs	SHiPGeometry::SBT::heliumSlabs (const SBTParams &params=kSBT)
	The helium stack for arbitrary params.
void	SHiPGeometry::SBT::buildHelium (GeoPhysVol *container, const GeoMaterial *helium, std::span< const HeliumPiece > pieces=kHeliumPieces)
	Place helium slabs into container.

Variables
constexpr auto	SHiPGeometry::SBT::kHeliumPieces
	The helium slabs of the shipped SBT.
constexpr int	SHiPGeometry::SBT::kMaxSubFrustum = 64
