SHiP::DetectorPoint Class Reference

#include <DetectorPoint.h>

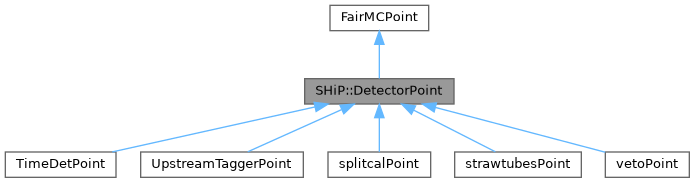

Inheritance diagram for SHiP::DetectorPoint:

Collaboration diagram for SHiP::DetectorPoint:

Public Member Functions
	DetectorPoint ()
	~DetectorPoint ()=default
	DetectorPoint (Int_t eventID, Int_t trackID, Int_t detID, TVector3 pos, TVector3 mom, Double_t tof, Double_t length, Double_t eLoss, Int_t pdgCode, TVector3 Lpos, TVector3 Lmom)
	DetectorPoint (Int_t eventID, Int_t trackID, Int_t detID, TVector3 pos, TVector3 mom, Double_t tof, Double_t length, Double_t eLoss, Int_t pdgCode)
	DetectorPoint (const DetectorPoint &point)=default
DetectorPoint &	operator= (const DetectorPoint &point)=default
virtual void	Print () const
Int_t	PdgCode () const
TVector3	LastPoint () const
TVector3	LastMom () const
virtual void	extraPrintInfo () const

Protected Attributes
Int_t	fPdgCode
std::array< Double_t, 3 >	fLpos
std::array< Double_t, 3 >	fLmom

Private Member Functions
	ClassDef (SHiP::DetectorPoint, 1)

Detailed Description

Definition at line 14 of file DetectorPoint.h.

Constructor & Destructor Documentation

DetectorPoint() [1/4]

SHiP::DetectorPoint::DetectorPoint ( )

inline

Definition at line 16 of file DetectorPoint.h.

{};

~DetectorPoint()

SHiP::DetectorPoint::~DetectorPoint ( )

default

DetectorPoint() [2/4]

SHiP::DetectorPoint::DetectorPoint	(	Int_t	eventID,
		Int_t	trackID,
		Int_t	detID,
		TVector3	pos,
		TVector3	mom,
		Double_t	tof,
		Double_t	length,
		Double_t	eLoss,
		Int_t	pdgCode,
		TVector3	Lpos,
		TVector3	Lmom
	)

Definition at line 10 of file DetectorPoint.cxx.

    : FairMCPoint(trackID, detID, pos, mom, tof, length, eLoss, eventID),
      fPdgCode(pdgcode),
      fLpos{Lpos.X(), Lpos.Y(), Lpos.Z()},
      fLmom{Lmom.X(), Lmom.Y(), Lmom.Z()} {}

DetectorPoint() [3/4]

SHiP::DetectorPoint::DetectorPoint	(	Int_t	eventID,
		Int_t	trackID,
		Int_t	detID,
		TVector3	pos,
		TVector3	mom,
		Double_t	tof,
		Double_t	length,
		Double_t	eLoss,
		Int_t	pdgCode
	)

Definition at line 20 of file DetectorPoint.cxx.

    : FairMCPoint(trackID, detID, pos, mom, tof, length, eLoss, eventID),
      fPdgCode(pdgcode),
      fLpos{pos.X(), pos.Y(), pos.Z()},
      fLmom{mom.X(), mom.Y(), mom.Z()} {}

DetectorPoint() [4/4]

SHiP::DetectorPoint::DetectorPoint ( const DetectorPoint &  point )

default

Copy constructor

Member Function Documentation

ClassDef()

SHiP::DetectorPoint::ClassDef ( SHiP::DetectorPoint  , 1    )

private

extraPrintInfo()

void SHiP::DetectorPoint::extraPrintInfo ( ) const

virtual

Reimplemented in splitcalPoint, strawtubesPoint, TimeDetPoint, UpstreamTaggerPoint, and vetoPoint.

Definition at line 41 of file DetectorPoint.cxx.

                                             {
  LOG(info) << "Nothing to see here";
}

LastMom()

TVector3 SHiP::DetectorPoint::LastMom ( ) const

inline

Definition at line 36 of file DetectorPoint.h.

{ return TVector3(fLmom[0], fLmom[1], fLmom[2]); }

LastPoint()

TVector3 SHiP::DetectorPoint::LastPoint ( ) const

inline

Definition at line 35 of file DetectorPoint.h.

{ return TVector3(fLpos[0], fLpos[1], fLpos[2]); }

operator=()

DetectorPoint & SHiP::DetectorPoint::operator= ( const DetectorPoint &  point )

default

PdgCode()

Int_t SHiP::DetectorPoint::PdgCode ( ) const

inline

Definition at line 34 of file DetectorPoint.h.

{ return fPdgCode; }

Print()

void SHiP::DetectorPoint::Print ( ) const

virtual

Definition at line 30 of file DetectorPoint.cxx.

                                    {
  LOG(info) << "-I- " << ClassName() << " point for track " << fTrackID
            << " in detector " << fDetectorID;
  LOG(info) << "    Position (" << fX << ", " << fY << ", " << fZ << ") cm";
  LOG(info) << "    Momentum (" << fPx << ", " << fPy << ", " << fPz << ") GeV";
  LOG(info) << "    Time " << fTime << " ns,  Length " << fLength
            << " cm,  Energy loss " << fELoss * 1.0e06 << " keV";
  extraPrintInfo();
}

Member Data Documentation

fLmom

std::array<Double_t, 3> SHiP::DetectorPoint::fLmom

protected

Definition at line 42 of file DetectorPoint.h.

fLpos

std::array<Double_t, 3> SHiP::DetectorPoint::fLpos

protected

Definition at line 42 of file DetectorPoint.h.

fPdgCode

Int_t SHiP::DetectorPoint::fPdgCode

protected

Definition at line 41 of file DetectorPoint.h.

---

The documentation for this class was generated from the following files:

• Detector/DetectorPoint.h
• Detector/DetectorPoint.cxx
